| MODEL | NO. | BORE (in.) | BELL (in.) | VALVE(S) | REMARKS | Image |
|---|---|---|---|---|---|---|
| New York Wonder | Sop Trombone |
|
||||
| Valve | Valve Produced: 1881 - 1881 Catalog: 1881 |
|
||||
| Bass Valve Produced: 1881 - 1881 Catalog: 1881 |
||||||
| Bass
Optional Tuning Slide Produced: 1881 - 1881 Catalog: 1881 |
|
|||||
| Optional Tuning Slide Produced: 1881 - 1881 Catalog: 1881 |
|
|||||

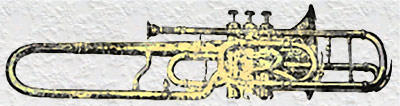

| New American Wonder | Alto Valve Produced: 1890 - 1899 Catalog: 1890 Musical Truth: 1899 |
|
||||
| Wonder | 3pup | Valve
bell size options: Small Trombone or larger
Produced: 1888 - 1888 Catalog: 1888 |
|
|||
| Wonder | 1r | showing optional Innes trill valve Produced: 1888 - 1888 Catalog: 1888 |
|
|||
| Wonder | optional Innes trill valve Produced: 1888 - 1888 Catalog: 1888 |
|
||||
| Wonder | 3Pup | Eb
Alto valve trombone
Patented 6/15/1886 Produced: 1888 - 1894 Catalog: 1888 Musical Truth: 1894 |
|
|||
| Wonder | Soprano
optional Innes trill valve Produced: 1888 - 1888 Catalog: 1888 |
|||||
| Wonder | Eb Alto
optional Innes trill valve Produced: 1888 - 1888 Catalog: 1888 |
|||||
| Wonder | Bb Baritone Slide trombone
optional Innes trill valve Produced: 1888 - 1888 Catalog: 1888 |
|||||
| Wonder | F or G Bass
Optional Innes Trill Valve
Produced: 1888 - 1888 Catalog: 1888 |
|||||
| Wonder | Baritone Valve Trombone
Produced: 1888 - 1888 Catalog: 1888 |
|||||
| Wonder | 3p | Valve Produced: 1890 - 1890 Catalog: 1890 |
|
|||
| Wonder | 3p | Baritone Valve Trombone Produced: 1890 - 1890 Catalog: 1890 |
|
|||
| Artist | Bell 6.25/7/8 Produced: 1890 - 1917 Catalog: 1890 Musical Truth: 1894, 1914, 1917 |
|
||||
| New York Artist | Slide Lock Option
Produced: 1899 - 1901 Musical Truth: 1899, 1901 |
|
||||
| Wonder/New York Wonder Lo | Produced: 1899 - 1906 Musical Truth: 1899, 1906 |
|
||||
| Artist/Perfected Artist | 6.25, 7, 8 | Tenor, Baritone, and Bb Bass versions Produced: 1904 - 1910 Musical Truth: 1904, 1910 |
|
|||
| Perfected Symphony | 8 | New Invention in 1913 Produced: 1910 - 1913 Musical Truth: 1910 Catalog: 1913 |
|
|||
| Perfected Wonder | 3Pup | Produced: 1910 - 1910 Musical Truth: 1910 |
|
|||
| Wonder | 3Pup | Eb Alto Produced: 1900 - 1913 Musical Truth: 1900, 1906 Catalog: 1913 |
|
|||
| New Wonder | 3Pup | Valve Produced: 1894 - 1894 Musical Truth: 1894 |
|
|||
| New Symphony | Medium/Lar | 7.5/8/8.5 | HP/LP Produced: 1917 - 1917 Catalog: 1917 |
|
||
| 2g | alto valve Produced: 1919 - 1923 |
|
||||
| Artist/Wurlitzer Special | 2h | .458 | 6.5 or 7 | LP
Produced: 1917 - 1929 Catalog: 1924, 1928 Serial: 1923 (206323) |
|
|
| 3g | alto valve HP/LP Produced: 1919 - 1923 |
|||||
| Artist/Wurlitzer Special | 3h | .458 | 6.5 or 7 | HP/LP Produced: 1917 - 1929 Catalog: 1924, 1928 Serial: 1914 (133522) |
|
|
| New Invention | 4g | .468 | valve Produced: 1913 - 1919 Catalog: 1913 |
|
||
| New Wonder | 4g | .500 | 7 | 3Pup | valve Produced: 1924 - 1941 Catalog: 1924, 1937 |
|
| Victor | 4h | .484 | Light Weight Slide Produced: 1954 - 1958 Catalog: 1950 |
|
||
| Artist/Wurlitzer Special | 4h | .484 | 6.5 or 7 | Produced: 1919 - 1929 Catalog: 1924, (1928,) 1930 |
|
|
| Artist Special | 4h | .484 | Nickel Trim Produced: 1934 - 1941 M. Truth 1934, Catalog: 1937, 1940 |
|||
| Artist | 4h | .484 | Produced: 1940 - 1954 |
|||
| New Wonder | 5g | .500 | 7 | 3Pup | HP/LP Produced: 1924 - 1941 Catalog: 1924, 1926 |
|
| Victor | 5g | .500 | Produced: 1956 - 1980 |
|
||
| Artist/Wurlitzer Special | 5h | .484 | 6.5 or 7 | HP/LP Produced: 1919 - 1939 Catalog: 1924, 1928 |
|
|
| 6g | .500 | C/Bb/A Produced: 1919 - 1937 |
|
|||
| Artist | 6h | .500 | 8 | also as Victor Produced: 1983 - 1985 |
|
|
| Symphony | 6h | .500 | 7.5/8/8.5 | LP Produced: 1913 - 1928 Catalog: 1924, 1928 Musical Truth: 1913, 1914 |
|
|
| Artist | 6h | .500 | 6.5 or 7 | Produced: 1934 - 1937 M. Truth 1934, Catalog: 1937 |
||
| 7g | .500 | C/Bb/A HP/LP Produced: 1919 - 1937 |
||||
| 7g | .500 | Valve section for 6h Produced: 1956 - 1969 Serial: 1958 (756160) |
|
|||
| Symphony` | 7h | .500 | 7.5 or 8 | HP/LP Produced: 1914 - 1928 Catalog: 1924, 1928 Musical Truth: 1914 |
||
| Artist | 7h | .525 | 8.5 | Rose Brass Bell |
||
| Italian | 8g | .500 | 7 | 3Pup | Produced: 1913 - 1934 Catalog: 1913, 1926 Serial: 1915 (140241) Musical Truth: 1916 |
|
| Symphony | 8h | .547 | 8/8.5 | LP Produced: 1919 - 1934 Catalog: 1924, 1928 Serial: 1921 |
|
|
| Artist Symphony | 8h | .547 | 8.5 | Red Brass Bell Produced: 1954 - 1970 Serial: 1962 (952xxx) - 1970 (N13381) |
|
|
| Italian | 9g | .500 | 7 | 3Pup | HP/LP Produced: 1919 - 1934 Catalog: 1924, 1926 |
|
| Symphony | 9h | .547 | 8/8.5 | HP/LP Produced: 1919 - 1934 Catalog: 1924, 1928 |
||
| Italian | 10g | .500 | C/Bb/A Produced: 1919 - 1929 |
|||
| Innes | 10h | .453 | 6.5/7 | 1p | LP
(originally with Tenor, baritone and Bass versions) Produced: 1890 - 1930 Catalog: 1890, 1924 Musical Truth: 1899, 1910 |
|
| Victor | 10h | .500 | 8 | Coprion Bell Light weight slide Produced: 1955 - 1963 Serial: 1957 (633936) - 1958 (724903) |
|
|
| Italian | 11g | .500 | C/Bb/A HP/LP Produced: 1919 - 1929 |
|||
| Innes | 11h | .453 | 6.5/7/8 | 1p | HP/LP Produced: 1919 - 1930 Catalog: 1890, 1924 Musical Truth: 1899, 1910 |
|
| Victor | 11h | .500 | 7.5 | |
|
|
| Italian | 12g | .500 | C Bb attachment Produced: 1919 - 1929 |
|||
| 12h | .484 | Coprion Produced: 1938 - 1955 Catalog: 1950 |
|
|||
| 12h | 8.5 | Piston valve F/E | LP
Bass, In-slide tuning Produced: 1919 - 1924 Catalog: 1924 |
|||
| Italian | 13g | .500 | C Bb attachment HP/LP Produced: 1919 - 1929 |
|||
| Director | 14h | .484 | 7.5 | Produced: 1954 - 1974 Serial: 1967 (L24301) |
|
|
| New Invention | 14h | Piston valve F/E | Bass, Inslide tuning, also New Wonder Produced: 1910 - 1924 Serial: 1924 (125088) |
|
||
| New Wonder | 14h | .523/.547 | 8.5 | F/E | LP
Bass, Inslide tuning
1924 cat says bore: .547 Produced: 1924 - 1932 Catalog: 1924, 1928 |
|
| Wonder | 16A | 4 | Sop Trombone Bb/A LP Produced: 1904 - 1929 Musical Truth: 1904 Catalog: 1924, 1928 Serial: 1921 (187017) |
|
||
| 16h | .453 | alto
LP Produced: 1919 - 1948 Catalog: 1924 |
|
|||
| Wonder | 17A | 4 | Sop Trombone Bb/A HP Produced: 1904 - 1929 Serial: 1921 (185946) Catalog: 1926 |
|
||
| 17h | .453 | Alto HP/LP Produced: 1919 - 1948 |
||||
| 17h | |
|
||||
| Director | 18h | .484 | 7.5 | Coprion Produced: 1954 - 1970 |
|
|
| Tait/Frisco Artist | 18h | .500 | 7, 7.5, 8 | LP
inslide tuning Produced: 1919 - 1931 Serial: 1923 (202457) Catalog: 1924, 1928 |
|
|
| Tait | 19h | .500 | HP/LP inslide tuning Produced: 1919 - 1926 |
|||
| Connquest | 20h | .484 | Produced: 1954 - 1955 Serial: 1954 (437xxx) |
|
||
| 20h | .458 | slide/ or 3p | Combination slide/valve
HP or LP Produced: 1919 - 1929 Trombone Catalog: 1924 |
|
||
| 21h | Slide and 3p | HP/LP Combination Slide/Valve Produced: 1919 - 1929 Only Slide Shown |
|
|||
| Connquest | 21h | .500 | Produced: 1955 - 1955 |
|||
| Director | 22h | .500 | |
|
||
| Alloo | 22h | Produced: 1919 - 1924 |
||||
| Artist Ballroom | 22h | .458 | 6.5,7,8 | Produced: 1928 - 1932 Catalog: 1928, 1930 |
||
| Alloo | 23h | HP/LP Produced: 1919 - 1924 |
||||
| Artist Ballroom | 24h | .484 | 6.5,7,8 | Produced: 1928 - 1951 Catalog: 1928, (1930,) 1937 |
|
|
| Symphony Innes | 24h | Produced: 1919 - 1924 |
||||
| Artist Ballroom | 24h | .484 | Light weight slide Produced: 1940 - 1951 Catalog: 1940, 1950 |
|||
| Artist | 24h | .484 | Sy Zentner Model Produced: 1958 - 1970 |
|||
| Symphony Innes | 25h | HP/LP Produced: 1919 - 1924 |
||||
| Artist Ballroom | 25h | .484 | HP/LP Produced: 1928 - 1951 |
|||
| Symphony Innes | 26h | .484 | Produced: 1919 - 1924 |
|||
| Symphony Ballroom | 26h | .500 | 7.5/8 | Produced: 1928 - 1948 Catalog: 1928 Serial: 1930 (276157) |
|
|
| Symphony Innes | 27h | HP/LP Produced: 1919 - 1924 |
||||
| Symphony Ballroom | 27h | .500 | HP/LP Produced: 1928 - 1948 |
|||
| 28h | pitched in C Produced: 1919 - 1920 |
|||||
| Alloo | 28h | valve E | Produced: 1920 - 1924 |
|||
| Symphony Ballroom | 28h | .516 | Produced: 1928 - 1929 |
|||
| Connstellation | 28h | .484 | 7.5 | Produced: 1949 - 1953 Catalog: 1950 Serial: 1952 (398428) |
|
|
| Pan American Broadway | 30/31h | .453 | 7 | Slide Lock Produced: 1919 - 1932 Catalog: 1924, 1927 |
|
|
| Pan American | 30g | alto valve Produced: 1919 - 1929 |
||||
| Burkle | 30h | .494-.507 | 7/7.5 | Produced: 1934 - 1958 Catalog: 1935, 1950 Serial: 1952 (298522) |
|
|
| Pan American | 32/33h | .516/.531 | 8 | LP / LP/HP
33H discontinued 1929 Produced: 1919 - 1932 |
||
| Pan American | 32g/64g | .469 | 7 | 3pup | valve Produced: 1919 - 1935 Catalog: 1924, 1935 |
|
| Burkle | 32h | .500/.516 | 7/7.5 | Duo-bore Produced: 1934 - 1962 Catalog: 1935, 1937 Serial: 1952 (397096) |
|
|
| Pan American | 33g | .469 | 7 | 3pup | valve LP/HP Produced: 1924 - 1927 Catalog: 1924, 1927 |
|
| Pan American | 34/35H | .484 | Produced: 1929 - 1931 |
|||
| Pan American | 34g/62g | .469 | valve C/Bb/A Produced: 1929 - 1931 |
|||
| Special | 35h | .484/.500 | Eb Alto inslide tuning Produced: 1965 - 1971 Serial: 1966 (H66248) |
|
||
| 36h | .491-.500 | Bb trigger | |
|||
| Artist Ballroom | 38h | .484 | 6.5/7 | Inslide tuning Produced: 1924 - 1930 Catalog: 1924, 1928 |
|
|
| Connstellation | 38h | .500 | 7.5 | Produced: 1954 - 1956 |
||
| Ballroom | 40h | .500 | 7 | LP
inslide tuning Produced: 1924 - 1934 Catalog: 1924, 1928 |
|
|
| Ballroom | 41h | .500 | HP/ LP inslide tuning Produced: 1925 - 1934 |
|||
| Ballroom | 42h | .523 | 8/8.5 | Inslide tuning Produced: 1924 - 1930 Catalog: 1924, 1928 |
|
|
| Connqueror | 44h | .484 | 7 | Produced: 1932 - 1951 Catalog: 1935, 1950 Serial: 1932 (2875xx) |
|
|
| Connqueror | 45h | .484 | HP/LP Produced: 1932 - 1951 |
|||
| Connstellation | 48h | .500 | 8 | Nickel plated bell Produced: 1956 - 1985 Serial: 1968 (L36566) - 1969 (M91433) |
|
|
| International | 50G | Produced: 1919 - 1932 |
||||
| Pan American Classic | 50h | 7 | LP Produced: 1925 - 1929 Catalog: 1925 |
|
||
| Director | 50h | .525 | 8 | Rotary F | Bass Produced: 1965 - 1985 Serial: 1965 (E34339) |
|
| International | 51G | 7f | 3p | Long
HP/LP Produced: 1924 - 1924 Catalog: 1924 |
|
|
| Pan American | 51h | HP/LP Produced: 1924 - 1929 Catalog: 1924 |
|
|||
| Pan American, Sears Stenc | 51h | Produced: 1955 - 1958 |
||||
| Pan American, Selmer Amer | 52h | .484 | Produced: 1925 - 1929 |
|||
| 52h | .525-.457 | Rotary F | |
|
||
| Pan American, Selmer Amer | 54h | .484 | Produced: 1925 - 1929 |
|
||
| Artist (Government Model) | 58h | .484 | Produced: 1955 - 1958 |
|||
| Pan American, Continental | 58h | .484 | Produced: 1955 - 1958 |
|||
| C | 60h | 458 | 6.5 | 1r | LP
pitched in C/Bb Produced: 1919 - 1932 Catalog: 1924, 1928 |
|
| Artist Symphony | 60h | .562 | Rotary F | Bass inslide tuning, red brass bell Produced: 1968 - 1970 |
||
| Wonder | 61h | .458 | 6.5 | Bb Attachment | Pitched in C HP/LP Preacher Model Produced: 1916 - 1932 Catalog: 1924, 1928 Serial 1916 (146475) Musical Truth: 1916 |
|
| Simons/Duo Bell | 62h | .484 | 6.5 & 8/8. | Dual bells
LP Produced: 1919 - 1925 Trombone Catalog: 1924 Musical Truth: 1919 |
|
|
| Artist Symphony | 62h | .562 | 9.5 | F-D Dual rotors | Bass inslide tuning, red brass bell Produced: 1968 - 1970 |
|
| Symphony | 64h | .547 | Piston F/E | LP Produced: 1920 - 1924 Catalog: 1924 |
||
| Pan American Champion | 64h | .484 | 7 | Produced: 1931 - 1946 Catalog: 1931, 1935 |
|
|
| Symphony | 65h | .547 | Piston valve F/E | Bass HP/LP Produced: 1920 - 1923 |
||
| New Wonder | 66h | .547 | 8, 8 1/2 | 1r | LP
Bass F-E Produced: 1920 - 1925 Trombone Catalog: 1924 |
|
| 67h | .547 | 8,.8/5.875 | 1r F/E | Bass HP/LP Produced: 1920 - 1925 |
||
| Pan American | 68h | .484 | Nickel Trim Produced: 1948 - 1951 |
|
||
| Simons | 68h | Produced: 1920 - 1922 |
||||
| New Wonder | 70h | .562 | 9.5 | 1r | LP
F/E Inslide tuning Produced: 1924 - 1927 Catalog: 1924 |
|
| Fuchs | 70h | Rotary F/E | Produced: 1920 - 1923 |
|||
| Duo-Bore | 70h | .547/.563 | 9.5 | Rotary F/E | in slide tuning Produced: 1926 - 1937 Catalog: 1926, 1930 |
|
| Gerhard | 70h | .563 | 9.5 | Rotary F | Bass
Inslide tuning Produced: 1935 - 1955 Catalog: 1935, (1940), 1950 |
|
| Artist Symphony | 71h | .563 | Rotary F | Bass Produced: 1968 - 1979 Serial: 1969 (M30033) |
|
|
| 72h | .563 | Eb Bsss double slide Produced: 1921 - 1929 |
||||
| Connstellation | 72h | .563 | 1r | Produced: 1964 - 1964 |
||
| 72h | .563 | Double Slide | Eb Bass Produced: 1921 - 1921 |
|||
| Artist | 72h | .563 | Rotary F | Bass Produced: 1955 - 1968 Serial: 1959 (925xxx) - 1964 (E20608) |
|
|
| Connstellation | 72h | .563 | Rotary F | Produced: 1964 - 1964 |
|
|
| Artist Symphony | 73h | .562 | 9.5 | 2r F/D | Bass Produced: 1968 - 1979 Serial: 1969 (M91903) |
|
| 74h | .522 | 6.5 | Red Bell |
|
||
| Elkhart Band | 74h | .484 | Produced: 1933 - 1934 |
|||
| 74h | .563 | Double slide | Bbb Contrabass Produced: 1921 - 1929 Catalog: 1924 |
|||
| 74h | |
|
||||
| Elkhart Band | 74H | .484 | Produced: 1933 - 1948 |
|||
| Artist | 75h | .522 | 1R | F Rose Bell Serial: 1979 (GF970082) |
|
|
| Beitel Symphony | 76h | .547 | Produced: 1921 - 1926 |
|
||
| Symphony | 76h | .522/.547 | 7.5/8-8.75 | LP
inslide tuning Produced: 1926 - 1930 Catalog: 1926, 1928 |
|
|
| Pan American | 76h | .484 | Produced: 1936 - 1948 |
|||
| Century | 76h | .522 | 8.5 | |
||
| Beitel | 76H | |
||||
| 77h | .522 | 7.5 | |
|
||
| ConnQuest | 77h | .500 | 7.5 | Produced: 1957 - 1979 |
||
| Symphony | 78h | .522 | 8/8.5/8.75 | LP Produced: 1921 - 1937 Catalog: 1924, (1928,) 1937 |
|
|
| New Symphony | 78h | .523 | 7.5 | Red or Rose Bell Inslide tuning Produced: 1932 - 1950 Catalog: 1937 |
||
| Artist Symphony | 78h | .523 | Produced: 1953 - 1970 |
|||
| Artist | 78h | 1 | F Rose Bell |
|||
| 79H | Produced: 1964 - 1971 |
|
||||
| Symphony | 80h | .523 | 8/8.5/8.75 | 1r | Inslide tuning Produced: 1921 - 1929 Catalog: 1924, 1928 |
|
| New Symphony | 80h | medium | 8/8.5/8.75 | 1r | Duo-bore
Inslide tuning Produced: 1926 - 1926 Catalog: 1926 |
|
| New York Symphony | 82h | .522 | 8,8.5/8.75 | LP
inslide tuning Produced: 1924 - 1927 Catalog: 1924 |
|
|
| 83h | .562 | 9.5 | In Line Rotors | |
|
|
| California Symphony | 84h | .547/.563 | 9.5 | Rotary E | LP Produced: 1924 - 1927 Catalog: 1924 |
|
| 88h | .547 | 8.5 | Rotor F | Red Brass Bell Produced: 1954 - 1979 Serial: 1952 (418xxx) |
|
|
| 88h | .563 | G Bass Produced: 1925 - 1927 |
|
|||
| Lindberg | 88hy | Yellow Brass Bell |
||||
| 88hyo | .547 | 9.8 | Rotary F | Open Wrap |
||
| Sterline | 88sgx | .547-.562 | 8.5 | Rotary F | |
|
| Artist | 89h | .547 | Rotary F | Red Brass Bell (1970s) |
||
| Symphony | 89h | .547-.562 | 8.5 | convertible F Attachment |
||
| 90g | |
|
||||
| Cavalier | 94/95h | .453 | Produced: 1930 - 1948 |
|
||
| Cavalier | 96h | .484 | Catalog: 1936 Produced: 1936 - |
|
||
| Cavalier, Sears, Jenkins, | 98h | .484 | Produced: 1938 - |
|||
| Custom Artist | 100h | .500 | 8 | Interchangeable lead pipe Serial: 1952 (415380) |
|
|
| Pan American | 108h | .484 | Produced: 1948 - 1948 |
|||
| Custom | 110h | .562 | 9.5, 10 | Rotary F | Bass, Red Brass Bell |
|
| Custom | 111h | .562 | 9.5 | Rotors F, Eb | Bass, Red Brass Bell |
|
| Custom | 112h | .562 | 9.5, 10 | Rotors G, Gb | Bass, Inline rotors |
|
| Pan American | 208h | .484 | Nickel Trim Produced: 1950 - 1950 |
|||
| Pan American | 308h | .484 | Produced: 1950 - 1950 |
